32 mm Pellet Press Die Set
32 mm Pellet Press Die Set

32 mm Pellet Press Die Set

Regular price
Sold out
Sale price
$325.00

Pellet Die set for making 32 mm pellets from powders.

Free fast shipping across USA and Canada

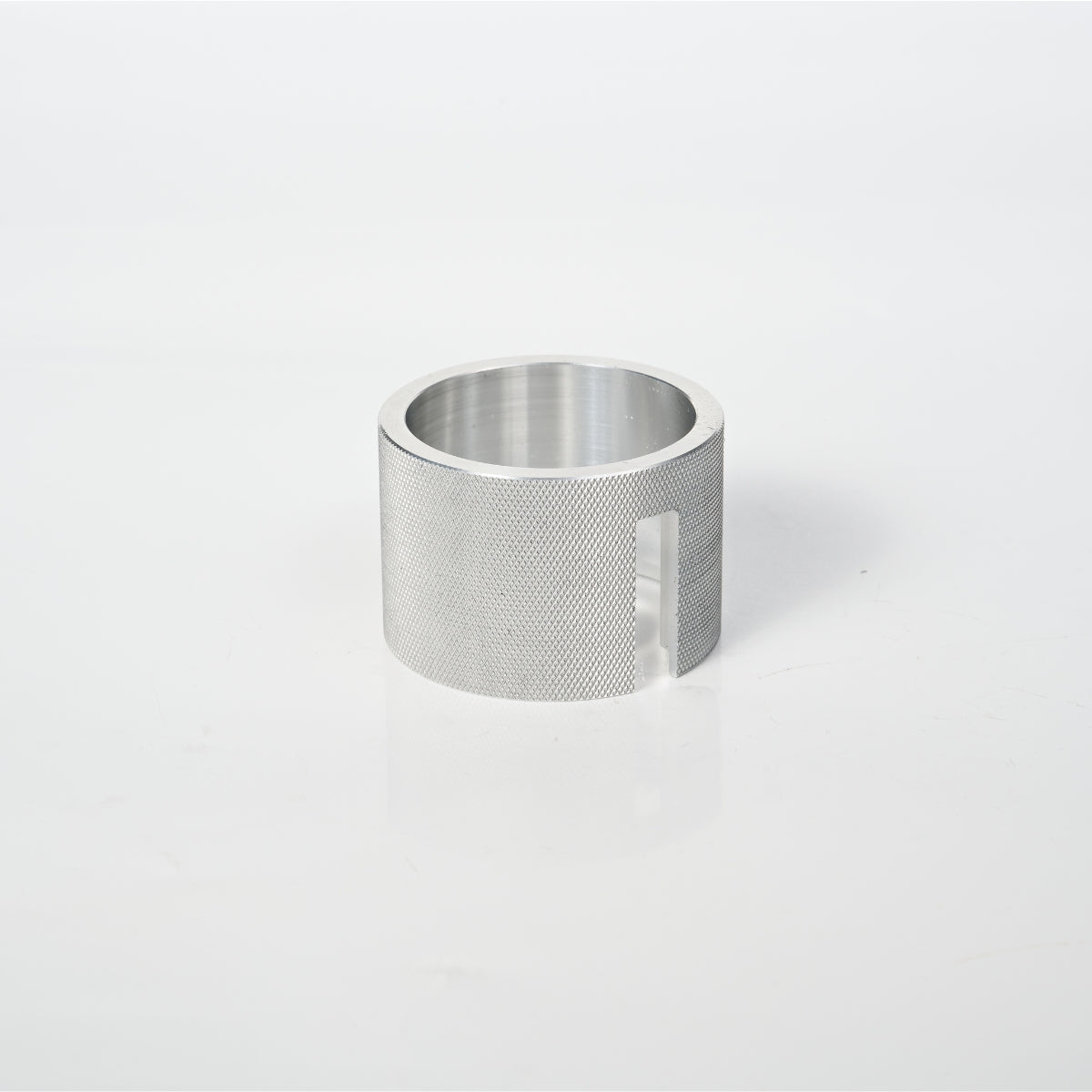

Die Set includes: Die sleeve, plunger rod, 2 x spacers, release ring and base plate.

32 mm pellet die sets are a standard size for making pellets from XRF spectroscopy as they offer a relatively large surface area. The size of the pellet makes them easy to handle around the lab and typically contains a manageable 5-20 g of powder depending on the material density.

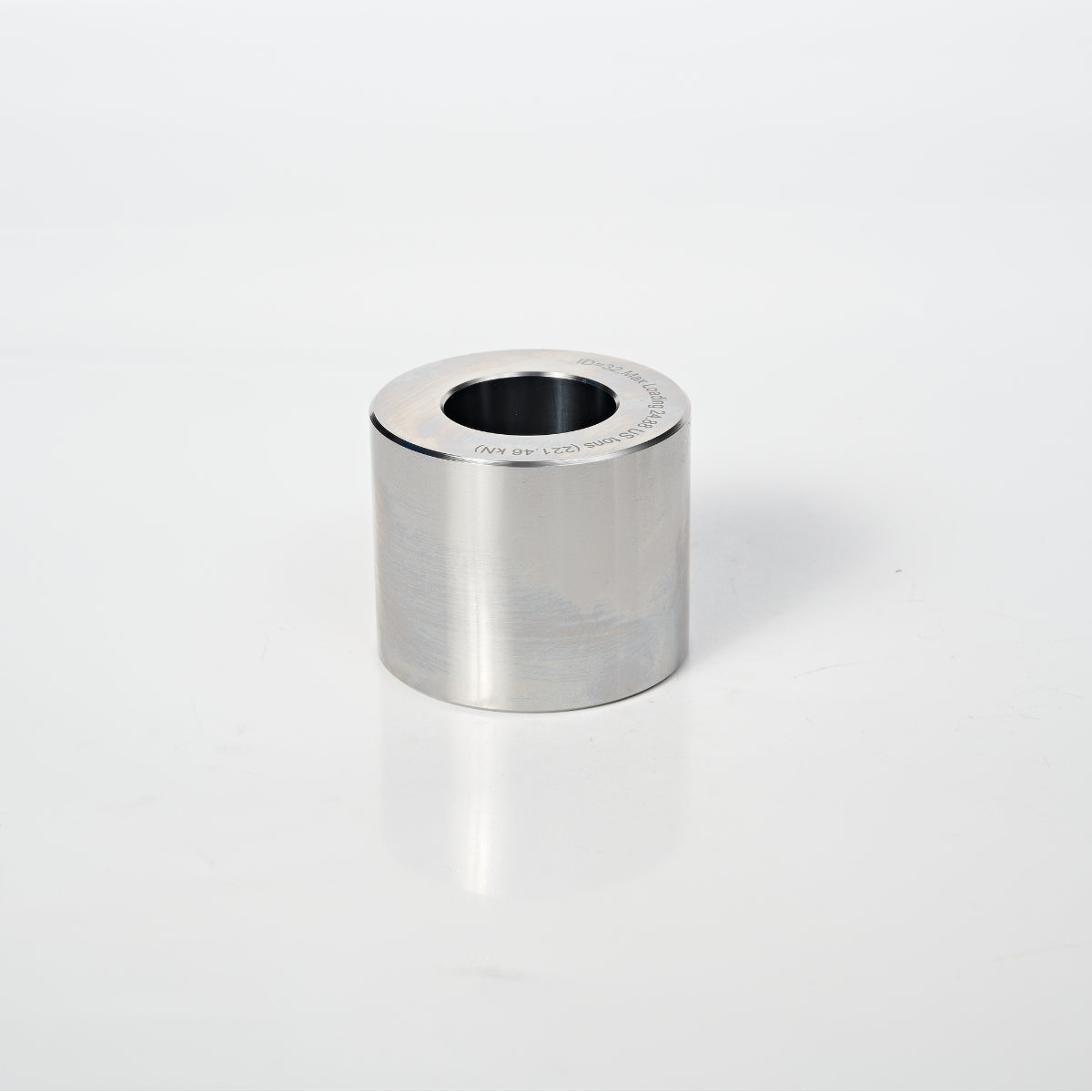

Die made of hardened tool steel (Rockwell hardness >C60) for long lasting trouble free performance. Sleeve is polished to high tolerances to allow the hardened tool steel plunger to slide through perfectly. Plunger and spacers are made from high yield strength steel, machined and polished to high tolerance for the perfect fit. Interior surfaces ground to mirror-like finish.


For an animation of die assembly, powder pressing and release click here.

Yield Strength Hardened Steel 80,000 psi (550 MPa)
Recommended max loading @ 50 % 40,000 psi (275 MPa)
Recommended max force
50,000 lb (25 tons, 220 kN)
Typical force for quality pellets 6200-18500 lb (3.0-9.0 tons, 28-83 kN)
Die sleeve inner diameter 32 mm (1.26 inch)
Die sleeve height 40 mm (1.97 inch)
Die sleeve outer diameter 70 mm (2.76 mm)
Assembled height with spacers (w/o powder)* 104 mm (4.09 inch)
Assembled height no spacers (w/o powder)* 84 mm (3.31 inch)

*If making thicker pellets, the die set can operate just the same without spacers.
