Die Set Specifications
| Pressure range | 0 -15T (0 - 30 MPa) |
| Pressure gauge | Digital display with range of 0.00 – 40.00 Mpa |
| Protection Cover (optional) | Polycarbonate Safety Shield is used with the press toprotect the user from fragmentation |
| Diameter of piston | 90 mm(D) |
| Max. Travel distance of the piston | 30 mm (T |
| Pressure stability | ≤1 MPa / 10 min |
| Diameter of the working station | 90mm (D) |
| Supporting size | 80*130 mm (M*N) |
| Dimensions | 260*175*390mm ( L*W*H) |
| Net weight | 40Kg |

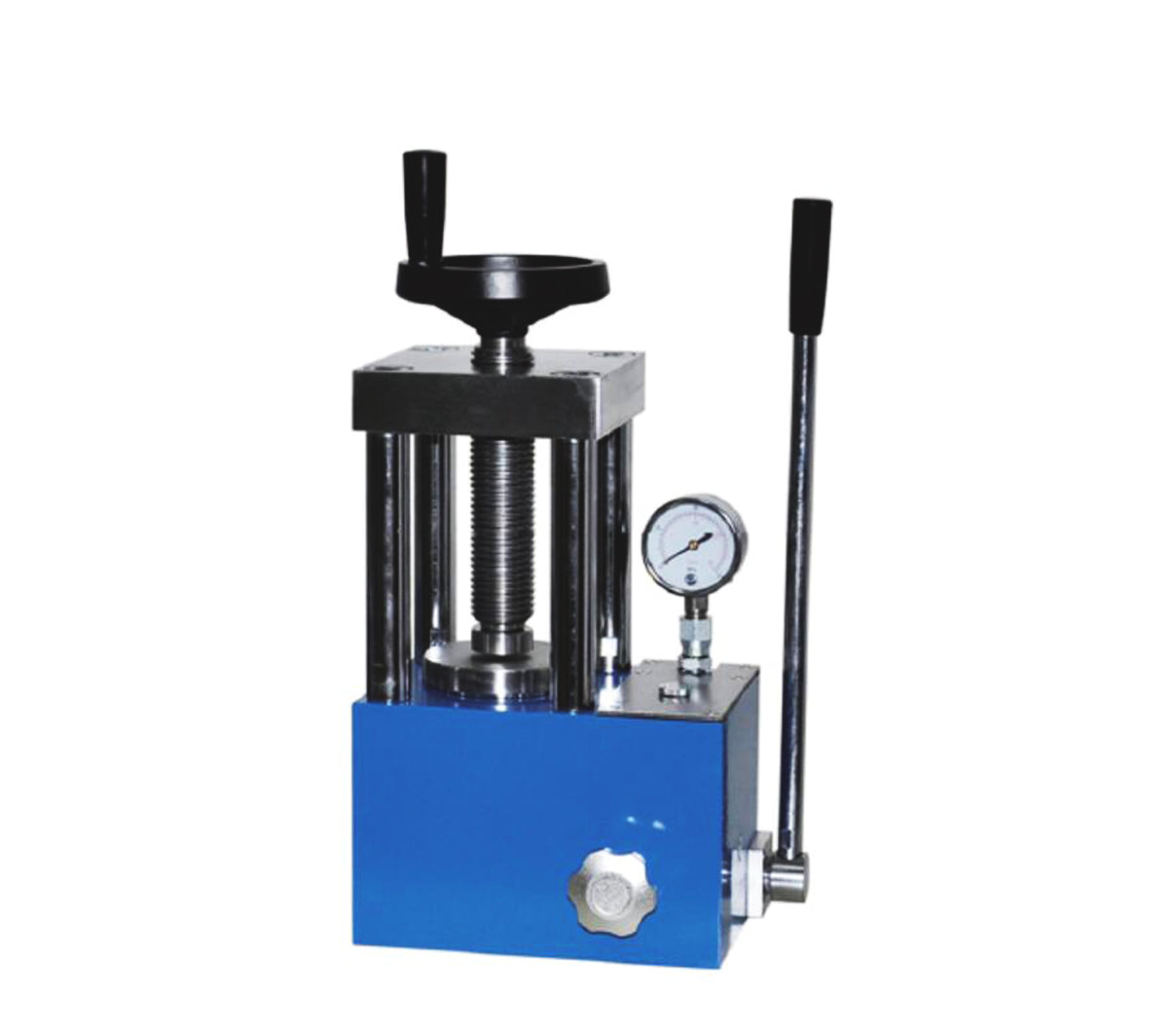

Hydraulic Lab Press with simple all-in-one design to mitigate oil leaks. Max pressing force of 15 Tons (133 kN). This press comes with a pressure gauge and has a 7 inch (175 mm) max die height and max acceptable die diameter 3.15 inch (80 mm). This press can be used for exerting sufficient force for making pellets using dies under 50 mm.
Top pressing surface on screw thread allowing quick aligning with the top of the die set and sample removal of the die unit.
For die sets over 50 mm, or smaller pellets requiring high loading then consider out 25 Ton option.
For a 25 mm die set, this is the main press we suggest using.
Max piston distance:Â 30 mm (sufficient for use with all our dies)
Outer dimension: 245 x 175 x 390 mm
Gross Weight: 40 kg / 88 lb
The weight of this hydraulic press is 40 kg / 88 lb. It will require 2 people to offload. Due to the weight there is a $150 USD worldwide delivery fee added onto the cost above at checkout.
